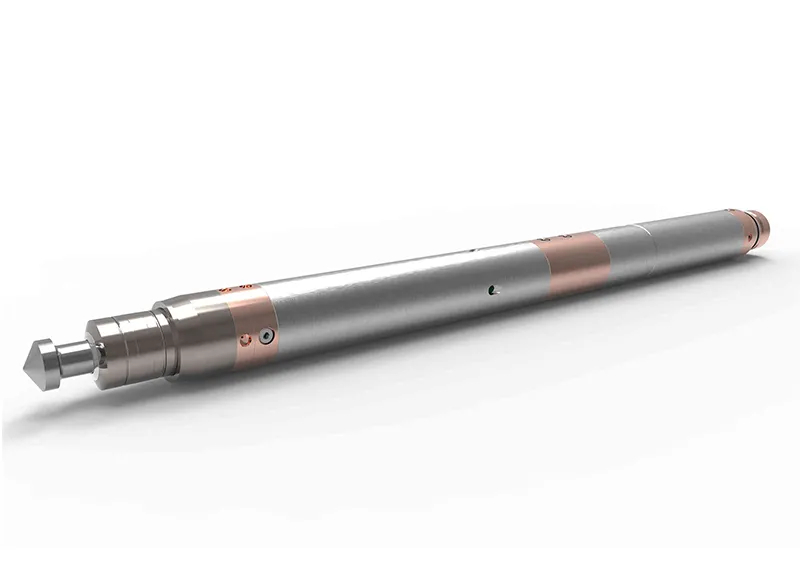

Direct - drive Pulse Generator

Robust and durable, suitable for harsh conditions.

Stable signal, high reliability.

Easy maintenance, short maintenance cycles.

Adjustable pulse amplitude.

Product Details

Product Specifications

Input voltage range	50-290VDC
Output electrical performance	30 V/100 W
Drive motor	Three-phase DC motor
Valve head stroke	20mm
Working temperature	-40℃~+150℃
Protection rating	IP68
Insulation class	Class 200

CUSTOMIZE TO MEET YOUR NEEDS

Our company can customize a variety of different power of mud generator, rectifier power supply, hydraulic module, drilling overall program, precision instruments of precision parts processing

RELEVANT CASE

Push back--China Aerospace Science and Industry Corporation (CASIC) 33rd Academy
(In this case, the generator, pulser, rectifier power supply, and pulser driving circuit are from our company.)
Bohai Drilling Company's BH-VDT series vertical drilling system is internationally advanced (the pulser and Alternator parts and components in this project are provided by our company)
Recently, the results of "Development and Application of BH-VDT Series Vertical Drilling System" completed by PetroChina Bohai Drilling Company passed the appraisal of scientific and technological achievements organized by China Petroleum
Daqing Drilling independently developed Rotary Steering System (RSS)
The new cutting-edge automated drilling technology - Rotary Steering System (RSS) - independently developed by Daqing Drilling Engineering and Technology Research Institute of Drilling has successfully carried out field tests on 23 wells.
BWG's Successful Application of Self-Developed Rotary Closed-Loop System (RCLS) - Case Study
In 2021, our self-developed Rotary Closed-Loop System (RCLS) was successfully deployed in the Niu 24-3111 oil well. The total running time of the tool was 96.5 hours, with 70.5 hours of active working time.
