Customize to Meet Your Needs
BWG provides tailored solutions for the oil and gas drilling industry, ensuring your specific technical and operational requirements are fully met.
Utilize high-frequency pulses from 0~40Hz to generate continuous signals, significantly increasing the rate, with maximum pulse width up to 40bps.
Maximum power 630W, capable of delivering up to 15Nm of torque. Contain hydraulic oil internally for lubrication and cooling.
Rotating transformer uses 5 pole pairs, offering higher accuracy and resolution.

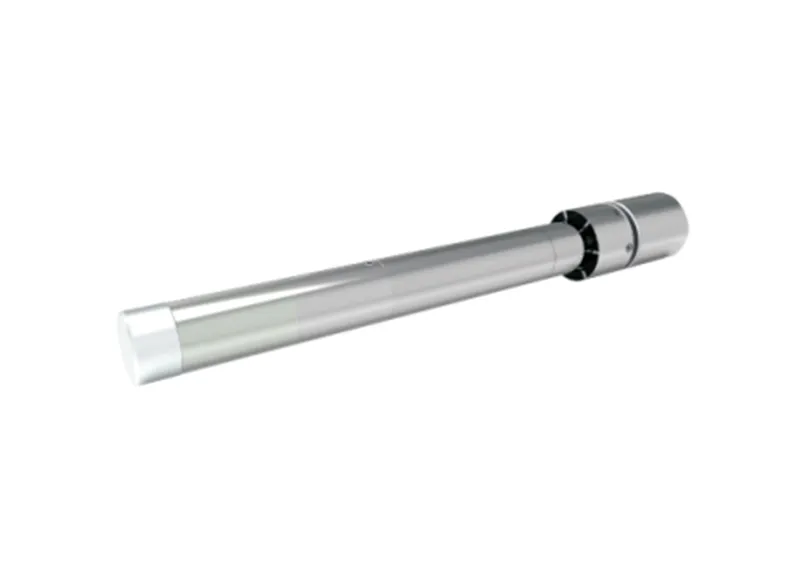

Product Details
Product Specifications
| Maximum operating temperature | 150°C, 175°C (optional) |
| Specification | 4.75", 6.75" |
| Total length | 747mm (including diverter valve 808.6mm) |
| Weight | Approximately 21.9kg (including diverter valve approximately 24.5kg) |
| Rotational torque | 4-15Nm |
| Maximum power consumption | 630W(90V@7A) |
| Maximum angle | ±12° (mechanical limit ±15°) |
