Simple installation structure, reliable operation.
Product serialization, suitable for various wellbore sizes.
Extended service life, high reliability, and easy maintenance.
Maintenance-free within 500 hours (except under special circumstances).

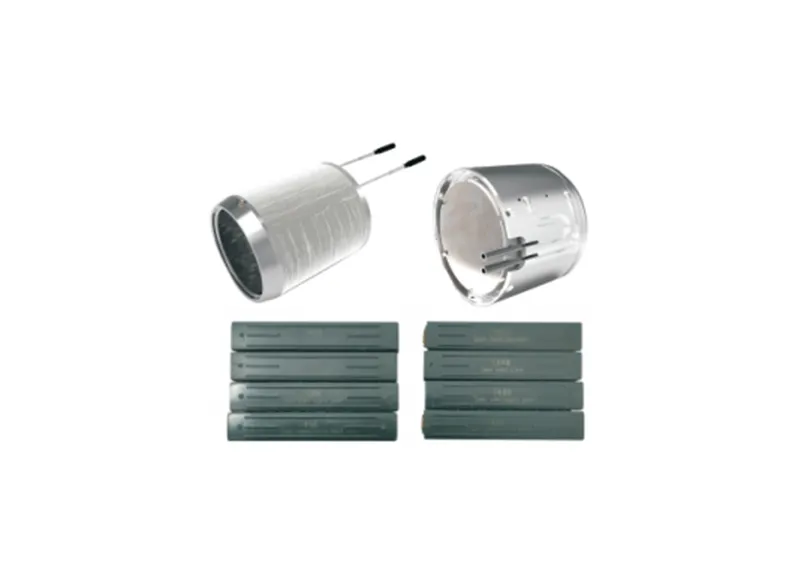

Product Details
Product Specifications
| Maximum operating temperature | 150°C, 175°C (optional) |
| Maximum Hydrostatitcpressure capacity | 20000 psi (138 MPa) |
| Input voltage | 36V±5% |
| Output voltage | 30V~43V (voltage varies with load intensity) |
| Transmission power | Not less than 120W |
| Energy transmission efficiency | Greater than 85% |
| Compatible tool sizes | 4-3/4", 6-3/4", and 9-1/2" |
| Signal transmission rate | 9600bps |
| Bidirectional communication bit error rate | <1% |
| Power management board output | +5V, ±12V (customizable) |
| Power output ripple | ≤50mV |
| Current limiting protection | 5A, adjustable protection threshold |
| Number of circuits | 8 pieces |
