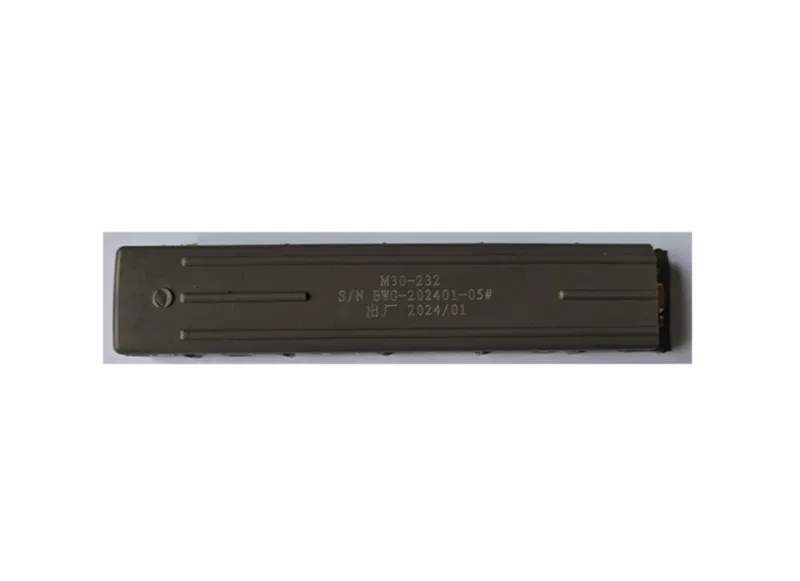

The M30 power line carrier communication board enables simultaneous power and communication transmission; modulates communication signals into FSK carrier signals superimposed on the power line, and demodulates FSK signals from the power line into communication signals, facilitating half-duplex communication.
Product Details
Product Specifications
| Basic Parameters | Operating voltage Vwork= 5 V (single power supply) Power line voltage Vpower= 24 ∼ 48 V (wide voltage range)Baud rate= 9600 BPS (communication frame interval 20ms) |
| Communication interface | RS232 communication interface requires a controllable 232 output interface on the main control board. RS485 communication interface standard RS485 interface. Other interfaces can be customized. Each circuit board can only choose one communication interface, not multiple simultaneously. |
| Installation dimensions | All mounting holes on the board are 3.2mm in diameter, fixed with M3 screws. Circuit board dimensions, LxWxH: 150mm*28mm*15mm. |
| Working temperature | Maximum operating temperature: 150°C and 175°C |
